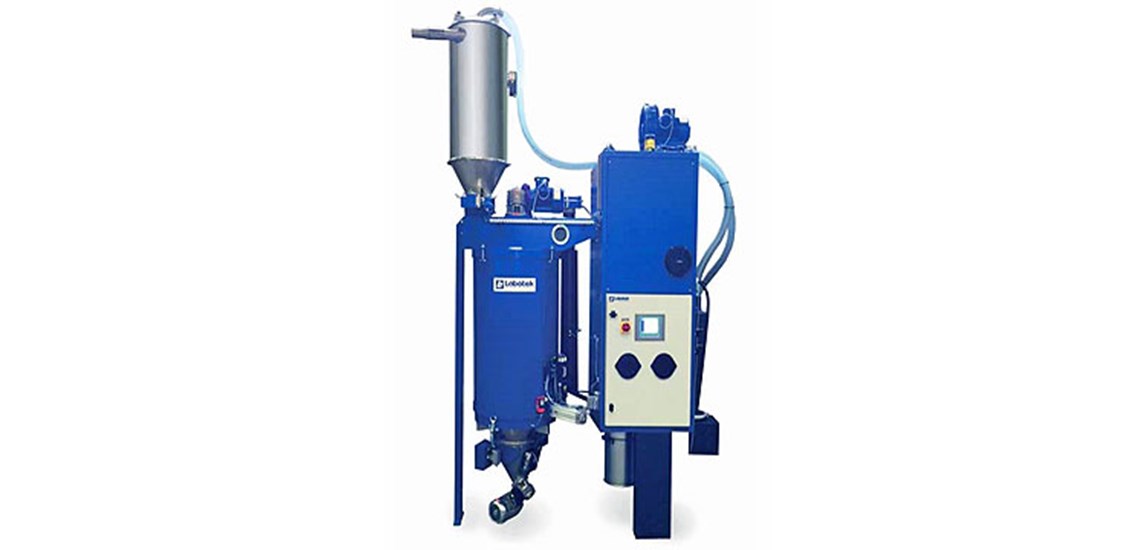

Conti Crystallizer
The Conti Crystallizer is a crystallization unit designed for continuous crystallization of amorphous (non-crystalline) PET.
The batch control eliminates cross-contamination of amorphous and crystalline material.
The Conti Crystallizer is supplied in 2 designs:
• Vacuum conveying for crystallization of amorphous granular PET material (type V).
• Screw conveying for crystallization of regrind originating from bottle, sheet, or film-making in either flakes or another free-flowing form (type S).
Comes in 4 versions:
| CC80-V | CC160-V | CC80-S | CC160-S | |
| Conveying Hopper [L] | 80 | 160 | 80 | 160 |
| Air volume max. [m³] | 720 | 1440 | 720 | 1440 |
Capacity
The crystallization capacity is dependent on the time of crystallization, bulk density, and the individual material.
The crystallization cycle is completed in approx. 20 minutes for amorphous PET and in 15 minutes for film or bottle regrind owing to its larger surface.
Comprehensive 3-year warranty, excl. wear parts.
The compact design minimizes footprint.
